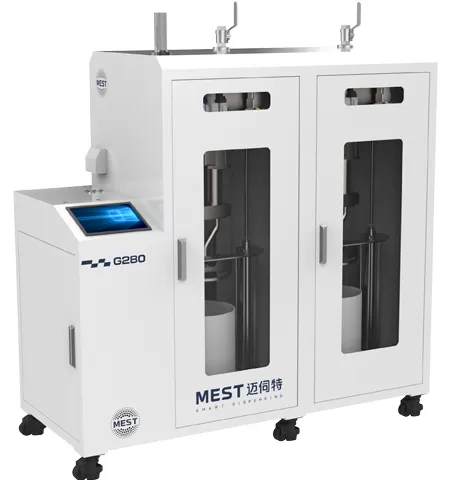

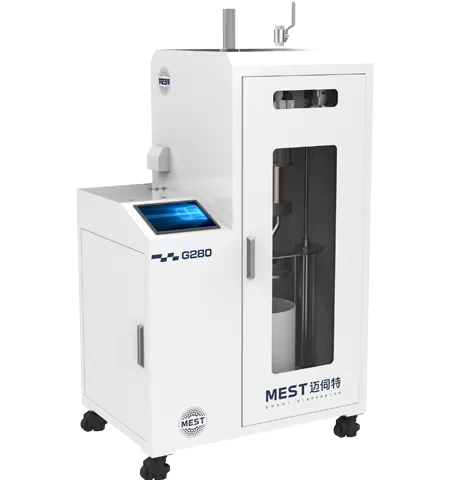

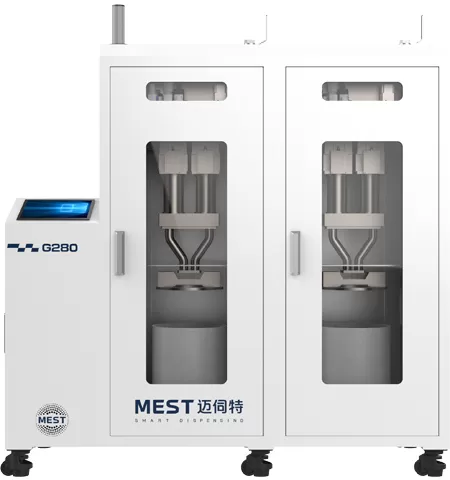

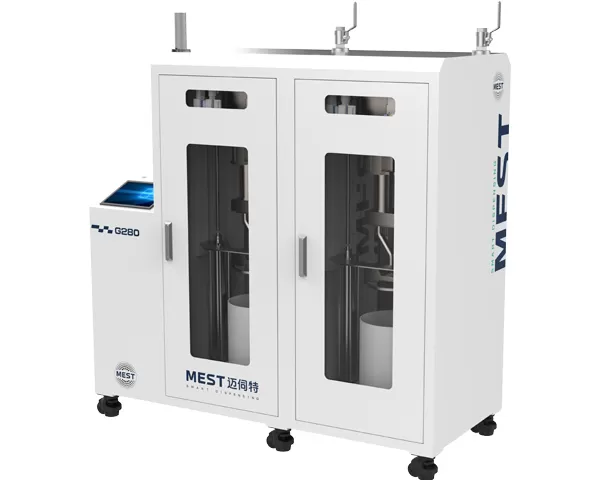

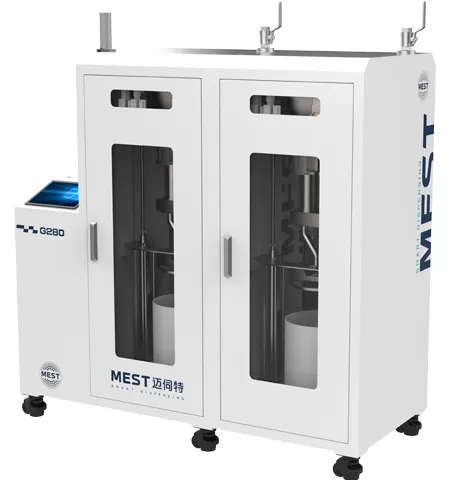

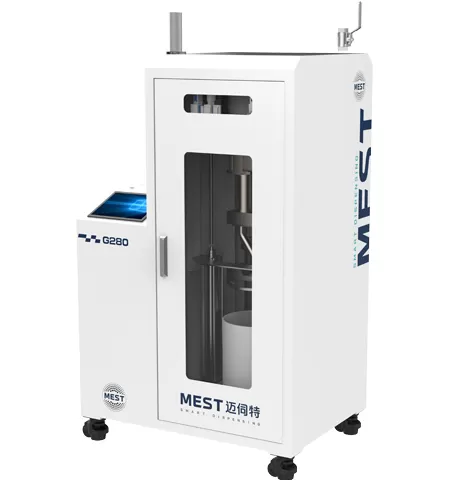

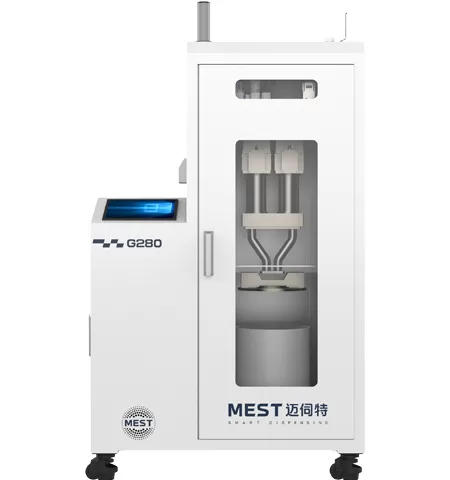

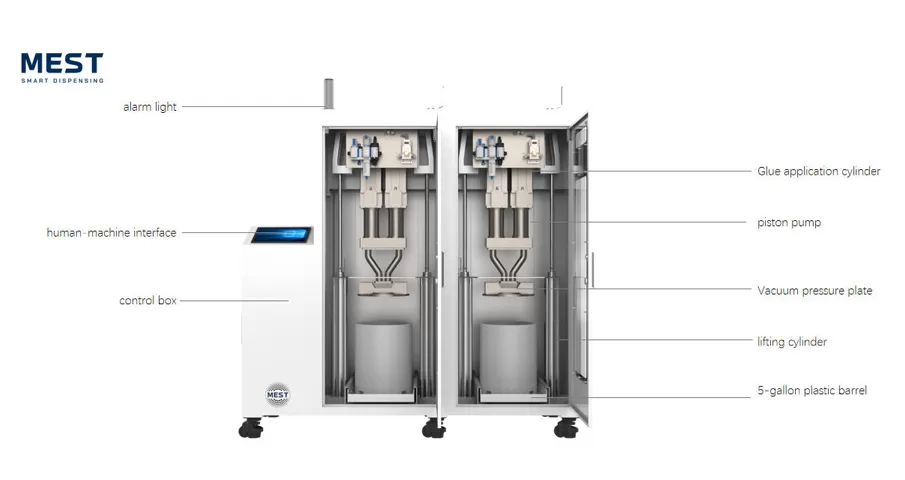

The G280 Pail feeding system independently developed and produced by MEST is used to process high-viscosity abrasive and non-abrasive singleand two-component heat dissipation and sealing materials. The Pail feeding system can automatically degas the glue on the surface. Double piston feeding pump can provide glue continuously. It can be specifically used in industries such as automotive electronics, photovoltaics, consumer electronics, aerospace and navigation, military industry and medical equipment. For example, ECU, steering and brake control systems, circuit board heat dissipation, etc. In addition, it is more suitable for abrasive and non-abrasive single- and two-component thermal conductive silicone grease and structural glue and adhesives.
Automatic pressure adjustment and vacuum control.

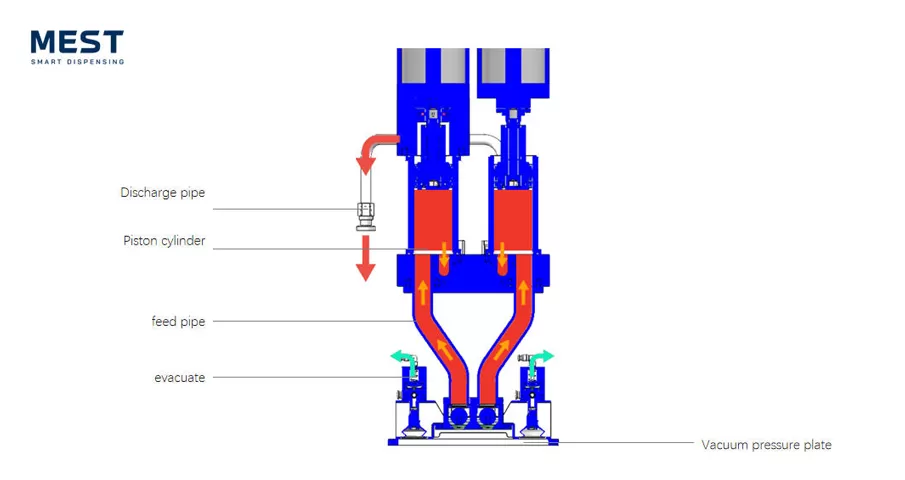

The sturdy and durable double-piston pump system brings longer service life.
The unit supplies materials and adds resin without stopping.
The UI interaction is extremely user-friendly and can be used in a variety of complex scenarios.
| Model | G280 |
| Two-component size(mm) | 1650(W) 700(D)*1650(H) |
| Single component size (mm) | 1000(W)*700(D)*1650(H) |
| Two-component weight (kg) | ≈500 |
| Single component weight (kg) | ≈300 |
| Control system | PLC + touch screen+ control software independently developed by MEST |
| Pressure barrel specifications (Gal) | 5 |
| Resin discharging method | Piston pump |
| Resin feeding method | direct connection to raw material barrel |
| Stable system | Electronic PlD control |
| Applicable viscosity range (cps) | 100000-2000000+ |
| Resin detection function | 0-100% |
| Power (w) | 600 |
| Input power | AC220V±10% 50Hz |
| Air source pressure (Mpa) | ≥0.55 |
| Applicable ambient temperature ('C ) | 0-50 |
