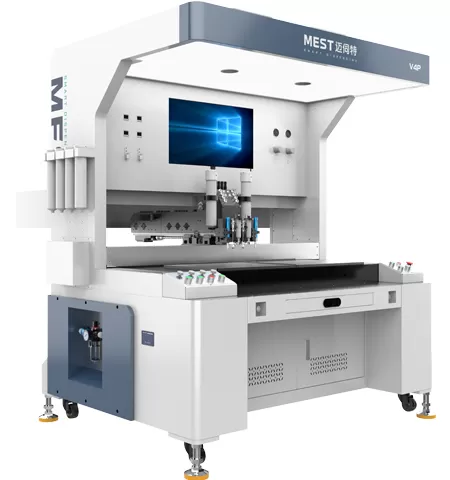

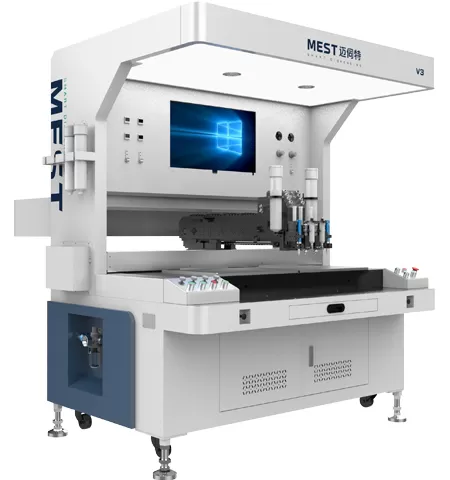

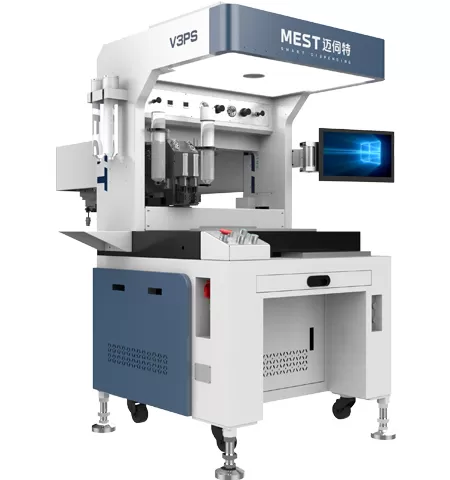

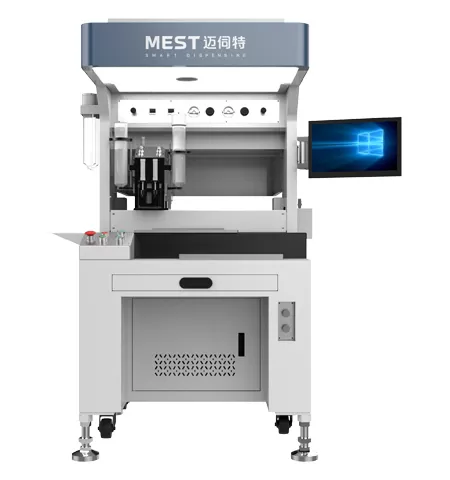

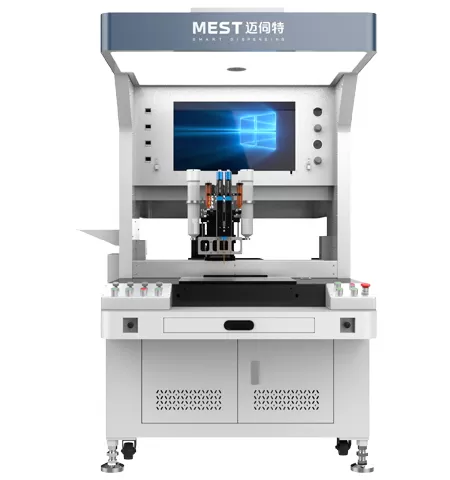

Panoramic Dispensing Machine V Series

Panoramic Dispensing Machine V Series

As a large-platform visual dispensing machine independently developed and produced by MEST, the MEST-V series has signifcant dispensing advantages and high cost performance.

It can be used in automotive electronics, 3C electronics, biomedical, security monitoring, aerospace and military industry, semiconductor, Mini LED and other industries. And suitable for red glue, solder paste, silver paste, UV glue, one-component epoxy resin, electronic silicone, oil glue, ink, lubricant, crystal glue, thermal conductive glue, black glue and other fluids.

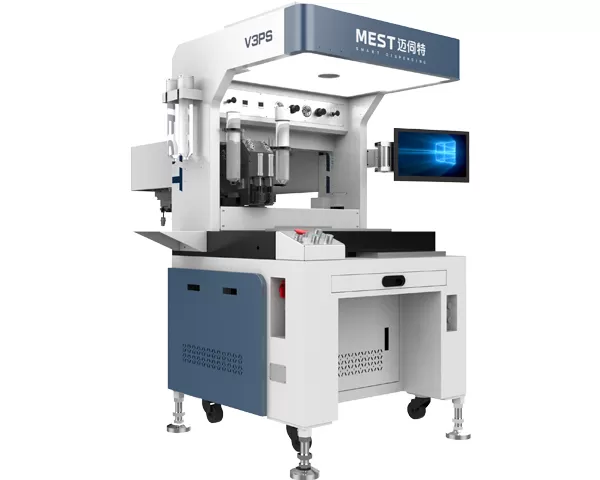

Features of Panoramic Dispensing Machine V Series

Features of Panoramic Dispensing Machine V Series
Product advantages:
  • High Precision: Utilizes a high-definition industrial camera for automatic and accurate position recognition, enabling visual programming. Optional CCD detection and positioning correction can be upgraded to a dual-vision system, allowing secondary visual positioning to capture high-precision product contours.

  • High Productivity: Supports multi-head automatic switching to enhance production efficiency significantly.

  • High Flexibility: Incorporates modular assembly technology, enabling independent disassembly of each critical component. Damaged parts can be quickly replaced to reduce downtime.

  • High Stability: Features a solid granite base for excellent structural stability. Ensures smooth, quiet operation even at high speeds. Equipped with durable, shielded anti-bending cables to fundamentally eliminate risks such as wire breakage or phase loss.

Specifications of Panoramic Dispensing Machine V Series

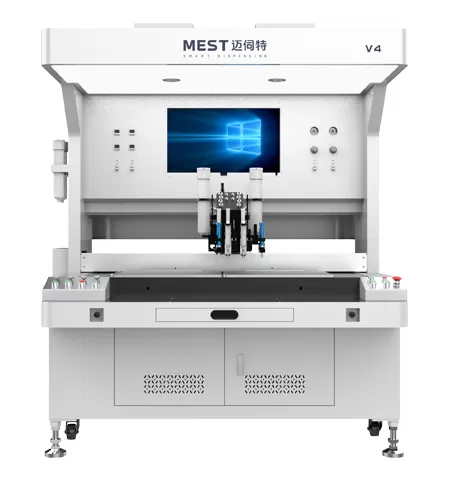

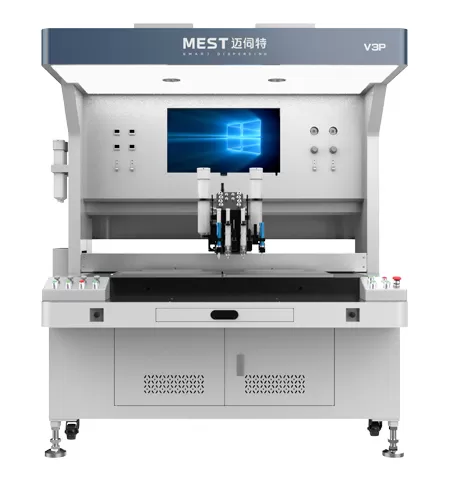

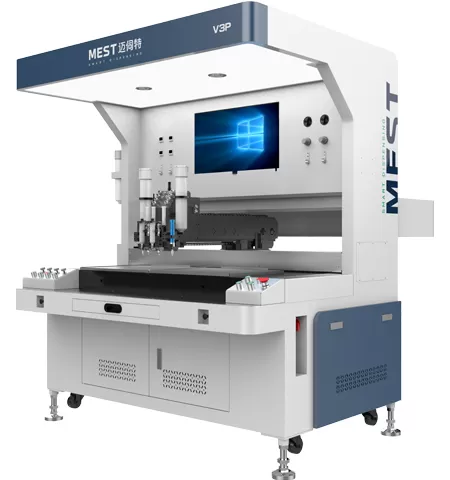

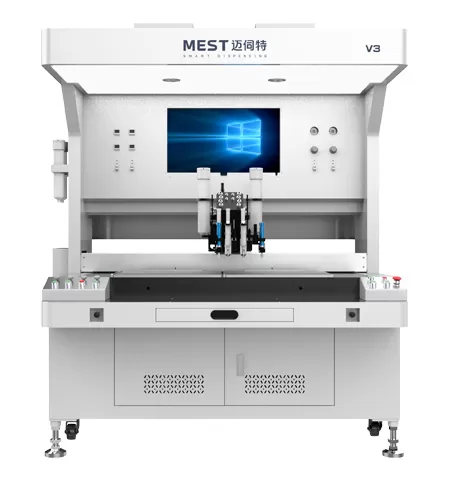

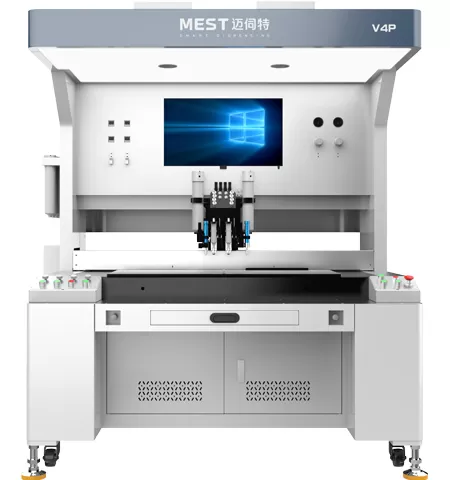

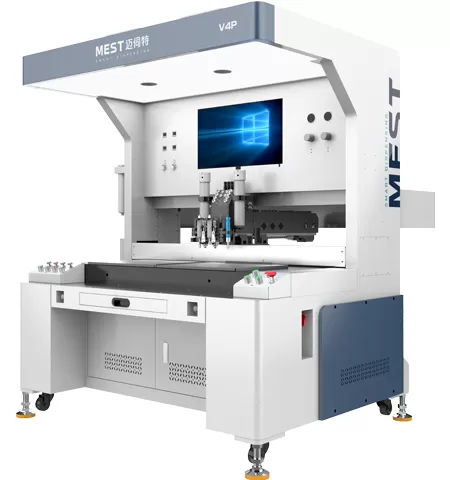

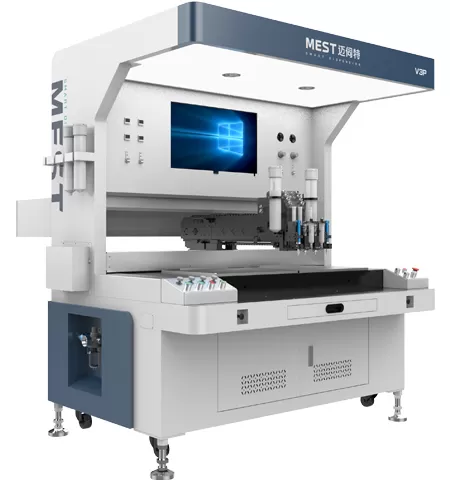

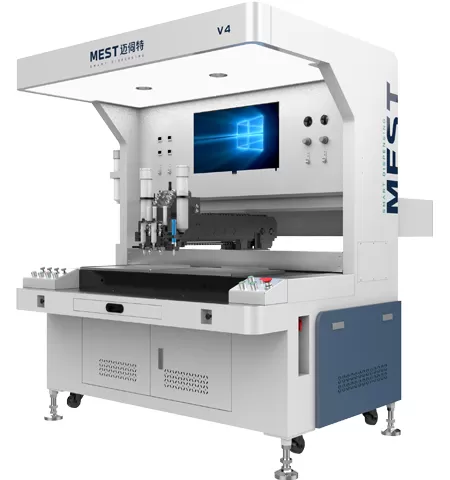

MEST-V3 |V3PMEST-V4 |V4P
Overall size (mm)1574(W)*1475(D)*1900(H)1725(W)*1675(D)*1985(H)
Weight (kg)600700
Number of stationsDuplex stationsDuplex stations
Working area(mm)300*400(Perwork station)400*500(Perwork station)
Control systemControlsoftwareindependently developed by MESTControlsoftwareindependently developed by MEST
Operating interfaceWindowsWindows
Number of dispensing heads1-4heads optional1-4heads optional
Industrial camera12 million/ 20 million pixels optional12 million/ 20 million pixels optional
Driving methodServo motor + grinding screwServo motor + grinding screw
Dispensing efficiency (k/H) (dotting)2020
Maximum speed (X, Y)(mm/s)700700
Repeat accuracy(mm士0.02士0.02
Positioning accuracy (mm)士0.05士0.05
Maximum load (kg)5(Z axis)5(Z axis)
Gas source pressure (Mpa>0.6>0.6
Light sourceEnergy-saving and environmentally friendly shadowless lampEnergy-saving and environmentally friendly shadowless lamp
