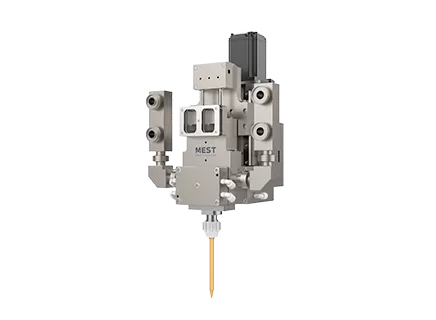

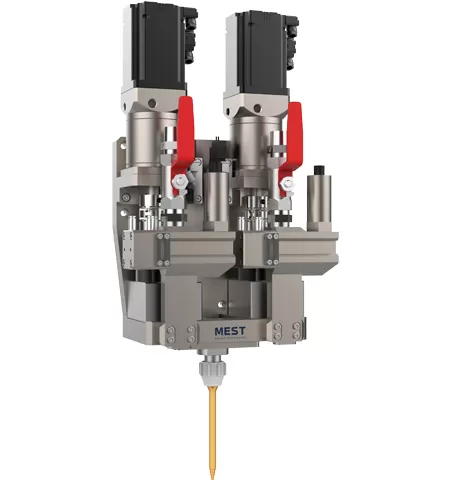

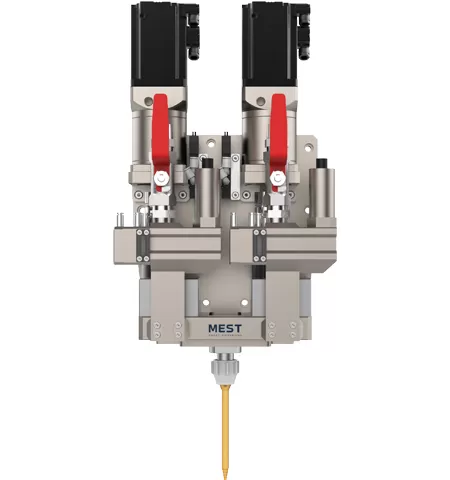

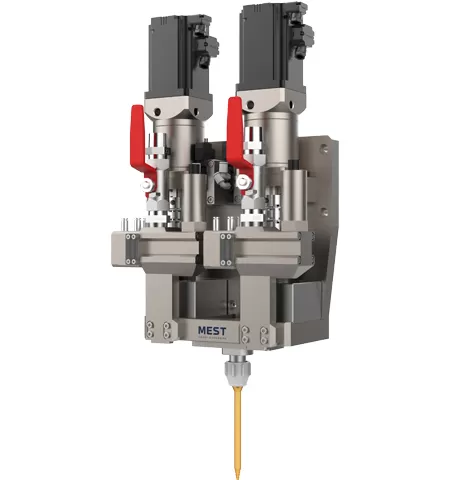

The gear injection valve MEST-GP30 is a volumetric injection head for continuous potting, suitable for processing single and two-component potting materials from low to high viscosity, non-abrasive. They consist of a housing with material inlet and outlet pipes and two gears, one of which is connected to the pump drive. The drive of the second gear is achieved by meshing with the drive of the first gear. With the help of the rotating gear, the pouring medium is sucked into the feed inlet, transported by the pump on the outside of the gear and then discharged at the discharge end. The amount of material discharged is determined by the tooth and gear geometry, the number of teeth and the set rotational speed Specifc applications include the continuous application of sealants on component housings or the application of adhesives during the joining process.
Stepper motor and linear guide for lifting mechanism
Pneumatic control for valve opening ar both input and outlet
Monitoring sensors for input and outlet valve status
Monitoring sensor for cylinder filler level
| Model | GP30 |
| Two-component size (mm) | 210(W)*130(D)*450(H) |
| Single component size (mm) | 120(W)*130(D)*450(H) |
| Weight (kg) | ≈ 10 / 5 |
| Measurement method | Gear Quantification |
| Volume mixing ratio | 1:1-100:10 |
| Glue dispensing accuracy | ±2%~3% |
| Minimum glue output (ml) | 0.01 |
| Glue discharging method | gear continuous discharging |
| Applicable viscosity range (cps) | 100-300000 |
| Power (w) | 800/400 |
| Input power | AC220V±10%50HZ |
| Gas source pressure (mpa) | ≥ 0.5 |
| Applicable ambient temperature (℃ ) | 0-50 |
