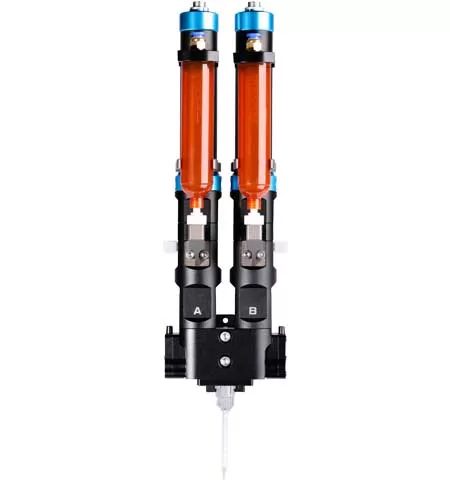

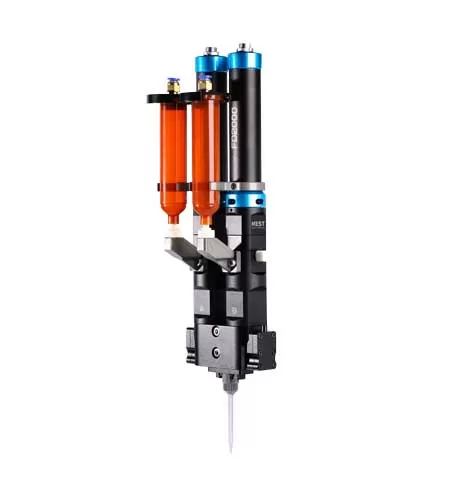

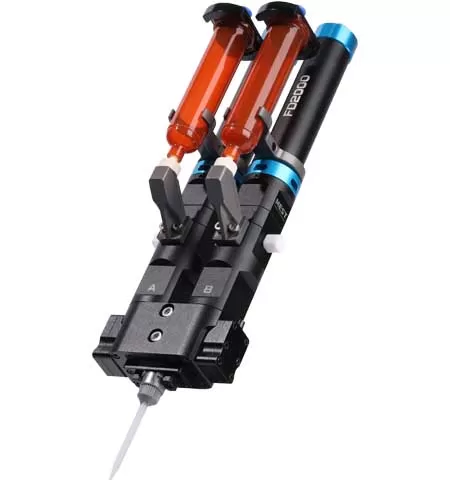

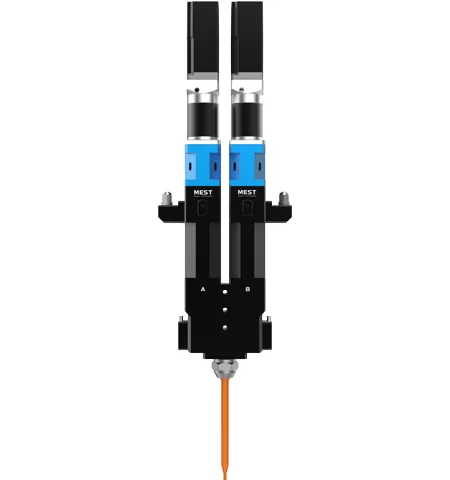

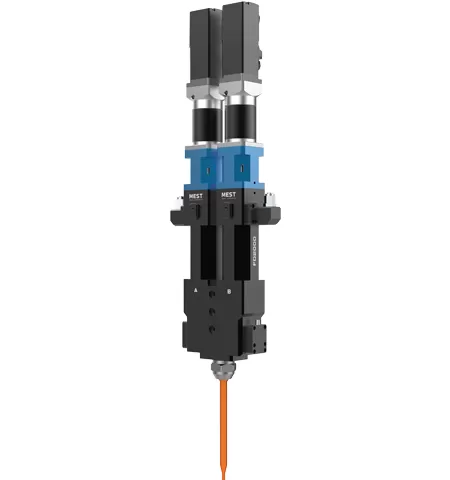

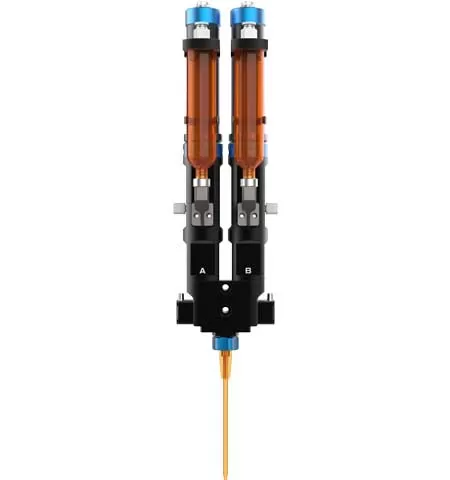

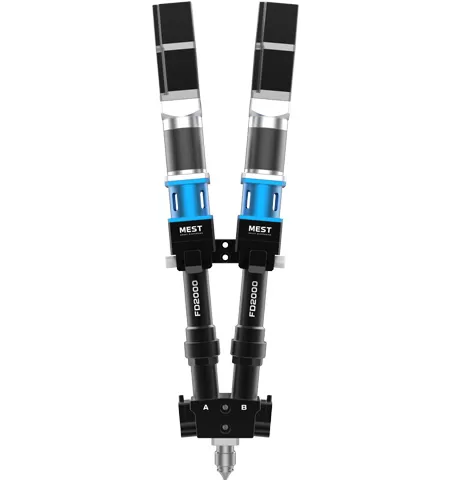

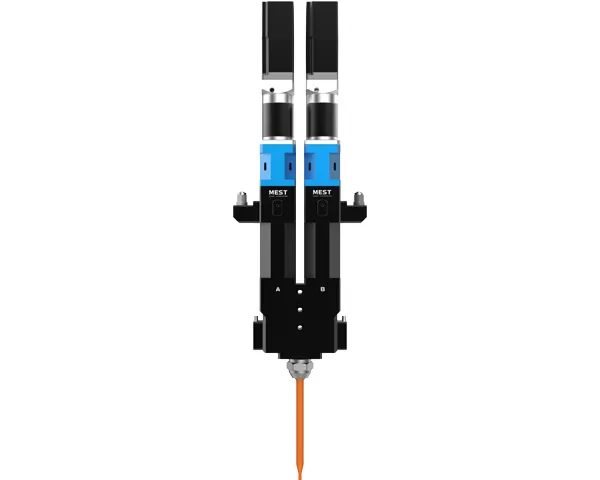

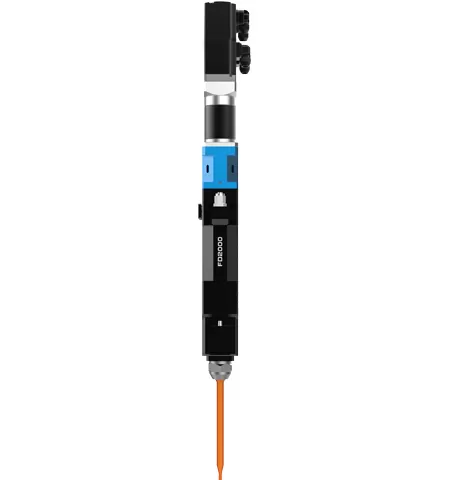

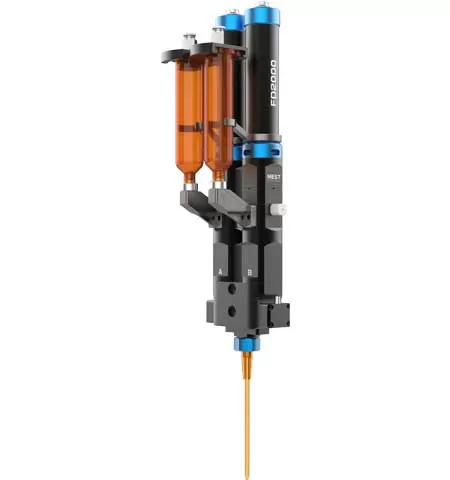

The MEST-FD2000 is a contact-type, two-component screw valve designed to precisely control the flow and mixing ratio of various two-component adhesives while performing high-speed dispensing operations. This valve is specifically used in industries such as automotive, electronics, aerospace, biotechnology, medical, food, and more. It is ideal for dispensing a wide range of fluids, including epoxy resin, polyurethane, silicone, conductive adhesives, ink, grease, and other materials, ensuring accurate and reliable performance in diverse applications.
Suitable for dispensing AB glue with low, medium and high viscosity
Adjust the speed of the two motors to quickly adjust the two-component dispensing ratio, which is simple to operate.
Precise output controland high dispensing repeatability
Dispensing accuracy 士1%
| Specifications | FD2000-0.06 | FD2000-0.6 |
| Overall dimensions(mm) | 32(W)*156(D)*310(H) | 45(W)*100(D)*370(H) |
| Weight(kg) | 1.6 | 5.2 |
| Suitable glue viscosity(CPS) | 0-500000 | 0-500000 |
| Mover material | SUS304/zirconium oxide | SUS304/zirconium oxide |
| Stator material | FFKM/FKM/EPDM | FFKM/ FKM/ EPDM |
| Inlet pressure(MPa) | 0~0.6 | 0~0.6 |
| Glue dispensing accuracy | ±2% | ±2% |
| Minimum dispensing | 0.01 | 0.06 |
| amount(cc) | ||
| Maximum dispensing | 7.2 | 72 |
| volume(ml/min) | ||
| Displacement(cc/r) | 0.06 | 0.6 |
